Deltatop DN62S

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Differential pressure

  • Product headline

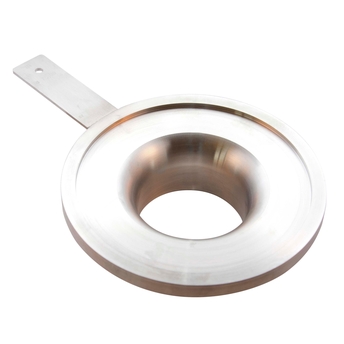

    Calculated volume or mass flow measurement. dp primary element (nozzle). ISA1932-nozzle or long radius nozzle.

  • Sensor features

    Internationally standardized ISO5167-3.

    Meter runs.

    Weld-In or flanged versions.

    Special materials.

    Compact or remote design.

    Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown.

    Deltabar S/M differential pressure transmitter.

  • Nominal diameter range

    DN 50...800

    2" ... 32"

  • Max. measurement error

    typically < 1% (ISA1932-nozzle) or 2% (long radius nozzle) of calculated volume or mass acc. ISO5167 without calibration.

    Uncertainty of primary element excluding uncertainty of density or compensation.

  • Measuring range

    15 ... 225'000m3/h

  • Max. process pressure

    PN2,5 ... 400

    Cl.150 ... 2500

  • Medium temperature range

    Compact version:

    -200°C ... 200°C

    -328°F ... 392°F



    Remote version:

    -200°C ... 1000°C

    -328°F ... 1832°F

  • Degree of protection

    Transmitter (Deltabar):

    IP67

    NEMA6P

  • Display/Operation

    Transmitter (Deltabar):

    4-line display

    3 push buttons

    Quick setup

    HistoROM

  • Outputs

    Transmitter (Deltabar):

    4 ... 20 mA

  • Digital communication

    Transmitter (Deltabar):

    HART

    PROFIBUS PA

    FOUNDATION Fieldbus

  • Hazardous area approvals

    Transmitter (Deltabar):

    ATEX

    FM

    CSA

    IEC

    TIIS

    NEPSI

  • Measuring principle

    Differential pressure

  • Product headline

    Calculated volume or mass flow measurement. dp primary element (nozzle). ISA1932-nozzle or long radius nozzle.

  • Sensor features

    Internationally standardized ISO5167-3.

    Meter runs.

    Weld-In or flanged versions.

    Special materials.

    Compact or remote design.

    Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown.

    Deltabar S/M differential pressure transmitter.

  • Nominal diameter range

    DN 50...800

    2" ... 32"

  • Max. measurement error

    typically < 1% (ISA1932-nozzle) or 2% (long radius nozzle) of calculated volume or mass acc. ISO5167 without calibration.

  • Measuring range

    0.5 ... 25'000m3/h

  • Max. process pressure

    PN2,5 ... 400

    Cl.150 ... 2500

  • Medium temperature range

    Compact version:

    -200°C ... 200°C

    -328°F ... 392°F



    Remote version:

    -200°C ... 1000°C

    -328°F ... 1832°F

  • Degree of protection

    Transmitter (Deltabar):

    IP67

    NEMA6P

  • Display/Operation

    Transmitter (Deltabar):

    4-line display

    3 push buttons

    Quick setup

    HistoROM

  • Outputs

    Transmitter (Deltabar):

    4 ... 20 mA

  • Digital communication

    Transmitter (Deltabar):

    HART

    PROFIBUS PA

    FOUNDATION Fieldbus

  • Hazardous area approvals

    Transmitter (Deltabar):

    ATEX

    FM

    CSA

    IEC

    TIIS

    NEPSI

  • Measuring principle

    Differential pressure

  • Product headline

    Calculated volume or mass flow measurement. dp primary element (nozzle). ISA1932-nozzle or long radius nozzle.

  • Sensor features

    Internationally standardized ISO5167-3.

    Meter runs.

    Weld-In or flanged versions.

    Special materials.

    Compact or remote design.

    Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown.

    Deltabar S/M differential pressure transmitter.

  • Nominal diameter range

    DN 50...800

    2" ... 32"

  • Max. measurement error

    typically < 1% (ISA1932-nozzle) or 2% (long radius nozzle) of calculated volume or mass acc. ISO5167 without calibration.

    Uncertainty of primary element excluding uncertainty of density or compensation.

  • Measuring range

    15 ... 225'000 m3/h

    75 kg/h ... 1'100 t/h at 10bar/230°C

  • Max. process pressure

    PN2,5 ... 400

    Cl.150 ... 2500

  • Medium temperature range

    Compact version:

    -200°C ... 200°C

    -328°F ... 392°F



    Remote version:

    -200°C ... 1000°C

    -328°F ... 1832°F

  • Degree of protection

    Transmitter (Deltabar):

    IP67

    NEMA6P

  • Display/Operation

    Transmitter (Deltabar):

    4-line display

    3 push buttons

    Quick setup

    HistoROM

  • Outputs

    Transmitter (Deltabar):

    4 ... 20 mA

  • Digital communication

    Transmitter (Deltabar):

    HART

    PROFIBUS PA

    FOUNDATION Fieldbus

  • Hazardous area approvals

    Transmitter (Deltabar):

    ATEX

    FM

    CSA

    IEC

    TIIS

    NEPSI

Documents / Manuals / Software

  • Deltatop DV61S, DN61S, DN62S, DO69S, DR61S Technical Information

    Universal differential pressure flowmeter systems

    With venturi tubes, nozzles, orifice plates and Deltabar S/M
    differential pressure transmitter. Pressure reduction with restriction
    orifices

    Technical Information (TI)
  • Komplettpaket Druckmesstechnik

    Ein Ansprechpartner - spart Zeit und reduziert Kosten

    Competence Brochure (CP)
    05/15
    German
  • Deltatop

    Product Code: DN61S-, DN62S-, DO61W-, DO62C-, DO63C-, DO64P-, DO65F-, DO69S-, DP61D-, DP62D-, DP63D-, DV61S-
    Region/Country: Russia (TR CU)
    Approval Agency: EAC
    Approval Number: TС RU D-DE.MU62.B.02478

    Miscellaneous
    Russian
  • Deltatop

    Product Code: DV61S-, DP63D-, DP62D-, DP61D-, DO69S-, DO65F-, DO64P-, DO63C-, DO62C-, DO61W-, DN62S-, DN61S-
    Region/Country: Russia (TR CU)
    Approval Agency: EAC
    Protection: Ex d IIC T6...T4 Gb, Ex ia IIC T6...T4 Gb

    Explosion Protection
    Russian
  • Deltatop

    Product Code: DN61S-, DN62S-, DO61W-, DO62C-, DO63C-, DO64P-, DO69S-, DV61S-

    Pressure Equipment
    Russian
  • Deltatop

    Product Code: DV61S-, DP69D-, DP63D-, DP62D-, DP61D-, DO65F-, DO64P-, DO63C-, DO62C-, DO61W-, DN62S-, DN61S-
    Region/Country: Russia
    Approval Agency: Rosstandart
    Approval Number: DE.C.29.004.A_56261

    Metrology
    Russian
