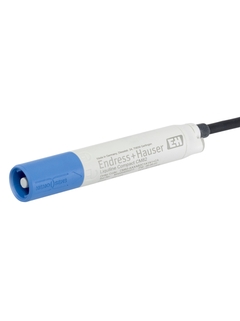

1-channel transmitter
Liquiline Compact CM82

The Liquiline Compact CM82 allows you to operate measuring points via tablets and smartphones. — The Liquiline Compact CM82 is ideal for limited installation spaces and allows you to operate your measuring points via tablets and smartphones.

Using the SmartBlue app, you can operate all CM82 measuring points within the Bluetooth range. — Using the SmartBlue app, you can check, operate and configure all CM82 measuring points within the Bluetooth range of your iOS or Android device.

The Liquiline Compact CM82 transmitter is suitable for pH, ORP, conductivity, and oxygen sensors. — The compact field device is the smallest transmitter for pH, ORP, conductivity and oxygen Memosens sensors.

Thanks to contactless data transmission, the
measured value is not affected by humidity, dust, etc. — Connect your sensor directly - without a cable - to the transmitter. Thanks to contactless data transmission, the measured value is not affected by humidity, dust, etc.

A red/green LED indicates the status of the transmitter and the connected sensor.

With the RIA15 you can display the measured value and make some basic settings on-site. — With the optional RIA15 you can display the measured value and make some basic settings on-site.

Multiparameter field device for hazardous and non-hazardous applications in all industries

The Liquiline Compact CM82 is the smallest transmitter for Memosens sensors. Its slender housing measures only 11 cm long and 2 cm wide, including a connection to which you can attach your sensor directly, without a cable. Together with the sensor, it fits into most assemblies and couldn’t be easier to install. Via a uniquely secure Bluetooth connection, you can see all nearby CM82 measuring points on your tablets or smartphones and operate them conveniently from a distance.

Sizing
Pricing after login and configuration

Compare

Quick selection

Choose from our suggested options

<%label%>
-- selected coding

-- selected label
<%label%>
Looking for more options? Please use the individual configurator to continue.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Looking for more options? Please use the individual configurator to continue.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Optional add-ons

Please use the individual configurator to continue.

or

Individual configuration

Continue your selection from all possible options

Configure

Additional components

RN221N
Active barrier with optional HART® diagnosis

Active barrier with power supply for safe separation of 4...20 mA current circuits
More information
Compare
RB223
Loop powered passive barrier

One or two-channel barrier for the safe separation of 4...20 mA standard signal circuits
More information
Compare
RNS221
Transmitter supply for DIN rail

Power supply for two 2 wire sensors or transmitters
More information
Compare
RIA46
Field meter with control unit

Multifunctional field meter for monitoring and indication of analog measured values
More information
Compare
RTA421
Limit switch

Contactor with loop power supply for monitoring current or voltage signals
More information
Compare

Benefits
Easy operation:
Use your existing tablets and smartphones for operation and commissioning.
Fast and reliable:
A secure Bluetooth connection allows you to check measuring points that are dangerous or difficult to access from a safe distance.
Benefit from...

Show more
Easy operation:
Use your existing tablets and smartphones for operation and commissioning.
Fast and reliable:
A secure Bluetooth connection allows you to check measuring points that are dangerous or difficult to access from a safe distance.
Benefit from all the advantages of Memosens technology:
Memosens sensors offer you the safest data transmission, the highest measured value availability and total ease of use.
Space-saving installation:
The two-wire device fits inside an assembly and does not require its own power supply.
Suitable for all locations:
Whether your measuring point is exposed to dust, vapor, rain, snow, heat or cold, the CM82 will always be exactly the right transmitter for you.

Show less

Field of application
Liquiline Compact CM82 can be used in all industries and their utilities and supports all sensors with the blue Memosens plug-in head:

pH sensors

ORP sensors

Conductivity sensors

Oxygen sensors

The loop-powered two-wire transmitter features the...

Show more
Liquiline Compact CM82 can be used in all industries and their utilities and supports all sensors with the blue Memosens plug-in head:

pH sensors

ORP sensors

Conductivity sensors

Oxygen sensors

The loop-powered two-wire transmitter features the following protocols and interfaces:

4...20 mA

HART

Bluetooth

With its international explosion protection approvals, such as IECEx, ATEX, and CSA, the Liquiline Compact CM82 is suitable for hazardous area use.

Show less

Features and specifications

Back

Details

Measuring principle

Glass electrode
Application

All sectors, supporting all sensors with the blue Memosens plug-in head, enviromental sector
Installation

Connection of digital sensors with Memosens-Protocol
Characteristic

Liquiline CM82 is a two-wire transmitter for all areas of process engineering
Design

Liquiline CM82 is optionally equipped with Bluetooth for comfortable remote commissioning via Smartphone/Tablets
Material

Housing, cover: Peek 151
Strain relief: EPDM
Axial ring Peek 450 G
Dimension

Diameter: 18.95 mm (0.75 inch)
Length: 114.7 mm (4.52 inch)
Connection

Connection of digital sensors with Memosens-Protocol
Ingres protection

IP67, IP68, NEMA Type 6
Input

One channel transmitter
Output

4 to 20 mA, HART
Additional certifications

CE, CSA C/US GP

Show more
Show less

Measuring principle

Glass electrode
Application

All sectors, supporting all sensors with the blue Memosens plug-in head, enviromental sector
Installation

Connection of digital sensors with Memosens-Protocol
Characteristic

Liquiline CM82 is a two-wire transmitter for all areas of process engineering
Design

Liquiline CM82 is optionally equipped with Bluetooth for comfortable remote commissioning via Smartphone/Tablets
Material

Housing, cover: Peek 151
Strain relief: EPDM
Axial ring Peek 450 G
Dimension

Diameter: 18.95 mm (0.75 inch)
Length: 114.7 mm (4.52 inch)
Connection

Connection of digital sensors with Memosens-Protocol
Input

One channel transmitter
Output

4 to 20 mA, HART

Show more
Show less

Measuring principle

Glass electrode
Application

All sectors, supporting all sensors with the blue Memosens plug-in head, enviromental sector
Installation

Connection of digital sensors with Memosens-Protocol
Characteristic

Liquiline CM82 is a two-wire transmitter for all areas of process engineering
Design

Liquiline CM82 is optionally equipped with Bluetooth for comfortable remote commissioning via Smartphone/Tablets
Material

Housing, cover: Peek 151
Strain relief: EPDM
Axial ring Peek 450 G
Dimension

Diameter: 18.95 mm (0.75 inch)
Length: 114.7 mm (4.52 inch)
Connection

Connection of digital sensors with Memosens-Protocol
Ingres protection

IP67, IP68, NEMA Type 6
Input

One channel transmitter
Output

4 to 20 mA, HART

Show more
Show less

Measuring principle

Glass electrode
Application

All sectors, supporting all sensors with the blue Memosens plug-in head, enviromental sector
Installation

Connection of digital sensors with Memosens-Protocol
Characteristic

Liquiline CM82 is a two-wire transmitter for all areas of process engineering
Design

Liquiline CM82 is optionally equipped with Bluetooth for comfortable remote commissioning via Smartphone/Tablets
Material

Housing, cover: Peek 151
Strain relief: EPDM
Axial ring Peek 450 G
Dimension

Diameter: 18.95 mm (0.75 inch)
Length: 114.7 mm (4.52 inch)
Connection

Connection of digital sensors with Memosens-Protocol
Ingres protection

IP67, IP68, NEMA Type 6
Input

One channel transmitter
Output

4 to 20 mA, HART

Show more
Show less
