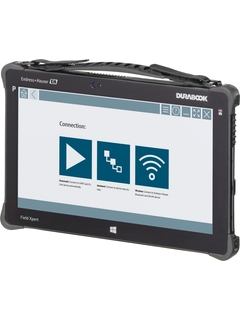

Tablet PC Field Xpert SMT70, product of the year (bronze) 2018 and Vaaler Award 2019 ©Endress+Hauser

Tablet PC Field Xpert SMT70

Non-Ex Tablet PC Field Xpert SMT70 ©Endress+Hauser

Non-Ex Tablet PC Field Xpert SMT70

Ex Tablet PC Field Xpert SMT70 ©Endress+Hauser

Ex Tablet PC Field Xpert SMT70

Plant Engineering: Product of the year (bronze) 2018 ©Endress+Hauser
Vaaler Award 2019 ©Endress+Hauser
Network architecture ©Endress+Hauser

Network architecture

Start screen with one-click automatic scan button ©Endress+Hauser

Start screen with one-click automatic scan and assistant button.

Protocol selection for manual selection of connection ©Endress+Hauser

Protocol selection for assisted selection of connection.

Device configuration ©Endress+Hauser

Device configuration

Universal, high-performance tablet PC for device configuration

The Field Xpert SMT70 tablet PC for device configuration enables mobile plant asset management in hazardous (Ex zone 2) and non-hazardous areas. It is suitable for commissioning and maintenance staff to manage Endress+Hauser and third-party field instruments with digital communication interface. This tablet PC is designed as a complete solution that comes with pre-installed driver libraries and is an easy-to-use, touch-enabled tool used to manage field instruments during their entire life cycle.

  • Benefits

    • High-performance, robust tablet with large 11.6" display and a battery runtime of up to 14 hours.

    • Touch-enabled device configuration software with a direct link to the Netilion Platform for optimized plant asset management.

    • Pre-installed device driver...

  • Field of application

    The Field Xpert SMT70 tablet PC for device configuration enables mobile plant asset management in hazardous and non-hazardous areas. It is suitable for commissioning and maintenance. It manages Endress+Hauser and third-party instruments with a digital...

Features and specifications

Back

Details

  • Measuring principle

    Device configurator

  • Function

    The Field Xpert SMT70 tablet PC for universal device configuration supports protocols such as HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus, and Endress+Hauser service protocols (CDI, ISS, IPC and PCP). The devices can be connected directly via a suitable interface e.g. a modem (point-to-point) or a bus system (point-to-bus).

  • Input

    Camera:

    • 5 MP camera on the back with auto focus and LED flash with 1500 mcd

    • 2 MP camera on the front

    Scanner:

    • 1D/2D barcode scanner

  • CPU

    Intel Core i5-5200U (2,2...2,7 GHz)

  • Memory

    • 8 GB with DDR3L adapter

    • 256 GB SSD M2-SATA robust version

    • Micro SD card slot, support for SDHC/SDXC

  • Power supply

    Replaceable, rechargeable lithium polymer battery, 11.1 VDC,
    4100 mAh (45 Wh)/7800 mAh (86 Wh) (optional)

  • Dimensions (WxHxD)

    298.5 mm x 192 mm x 20 mm

    (11.4 in x 7.48 in x 0.78 in)

  • Screen size

    • 11.6" LCD display, with Gorilla Glass protector

    • Capacitive multi-touch screen

    • Optical bonding, sunlight readable, LCD (730 Nit)

    • Ambient light sensor

  • Resolution

    1366 x 768 pixels

  • Communication interface

    • 2 x USB 3.0

    • Intel Wireless AC7260 802.11 a/b/g/n/ac, DUAL Band WLAN

    • Bluetooth 4.0 BLE, Class 1

    • 4G LTE WWAN + 12 channel GPS (optional)

  • Operation

    Operating system:

    Windows 10 IoT Enterprise

  • Configuration

    Touch-enabled device configuration software optimized for Field Xpert. The software supports protocols such as HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus, and Endress+Hauser service protocols (CDI, ISS, IPC and PCP) and includes more than 2,700 pre-installed device and communication drivers.

  • Optional

    4G LTE WWAN + 12 channel GPS

  • Certificates

    Degree of protection:

    • IP65

    Shock resistance:

    • MIL-STD 810G 516.6 Procedure IV

    Electromagnetic Compatibility:

    Interference conformance to

    • EN 55022: 2010+ AC: 2011

    • EN 55022 Class B

    • EN 61000-3-2

    • EN 61000-3-3

    Interference immunity to

    • EN 55024: 2010

    • IEC 61000-4-2

    • IEC 61000-4-3

    • IEC 61000-4-4

    • IEC 61000-4-5

    • IEC 61000-4-6

    • IEC 61000-4-8

    • IEC 61000-4-11

    Hazardous area approval:

    ATEX (Europe)

    • ATEX II 3G Ex ic IIC T4 Gc IP64

    • ATEX II 3D Ex ic IIIB T135°C Dc IP 64

    NEC/CEC (North America)

    • NEC/CEC Class 1, Div. 2, Group A-D T4

    • NEC/CEC Class 1, Zone 2, Group IIC T4

    IECEx (International)

    • IECEx Ex ic IIC T4 Gc IP64

    • IECEx Ex ic IIIB T135° Dc IP64

    Radio approval:

    • CE, FCC, IC

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code 71066844

      Viator Bluetooth Interf. f.HART Protocol

    • Order code 71371366

      Office Docking Station

    • Order code 71371367

      Vehicle Docking Station

    • Order code 71371368
    • Order code 71371369

      Shoulder Strap

    • Order code 71371370

      Leather protective cover

    • Order code 71371371

      Battery high capacity 7800mAh ≤14h

    • Order code 71371372

      Battery std. capacity 4100mAH ≤7h

    • Order code 71371374

      Dual battery charger high+std. capacity

    • Order code 71372868

      Hand strap SMT70

    • Order code 71372869

      Standard Tablet Charger SMT70

    • Order code 71394581

      Power Cord US, JP

    • Order code 71394582

      Power Cord CH

    • Order code 71394583

      Power Cord UK

    • Order code 71410402

      Power Cord EU

    • Order code 71410403

      Power Cord IT

    • Order code 71410405

      Power Cord ZA

    • Order code 71410549

      Microsoft Adapter USB 3.0 to Ethernet

    • Order code 71413421

      RFID NFC TAG Leser/Schreiber USB

    • Order code 71419778

      Viator USB-Hart Modem with PowerXpress

    • Order code 71439593

      Power Cord AU

    • Order code SFP20-

      FieldPort SFP20

      IO-Link USB interface FieldPort SFP20 for commissioning and maintaining of IO- Link measuring devices

    • Order code SFP50-

      FieldPort SFP50

      The FieldPort SFP50 is a HART USB and Bluetooth interface to configure measuring devices in combination with he Field Xpert SMT70/77, FieldCare SFE500,DeviceCare SFE100 and further FDT Frames. With additional licenses it is possible to configure as well PROFIBUS PA and FOUNDATION Fieldbus devices. It is useable in non hazardous and hazardous areas.

    • Order code SMT70-

      Field Xpert SMT70

      Rugged, high-performance Windows tablet 11.6" Multi-Touch Display (730 nits) for configuration, diagnosis + maintenance of field devices with dig.communication HART, PROFIBUS, FOUNDATION Fieldbus Modbus +Endress+Hauser service protocols based on DTM and EDD technology Device driver libraries for HART and FOUNDATION Fieldbus (iDTMs) and all Endress+Hauser devices are pre-installed Further device DTMs can be installed License: perpetual payware, full version single-station,multi-user,industr. cust. 1 year applicat. software update service

    • Order code SMT71-

      Field Xpert SMT71 - Software Upd.Service
