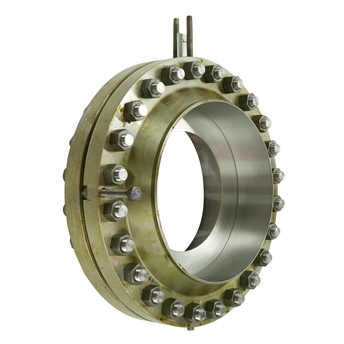

Deltatop DO61W

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Differential pressure

  • Product headline

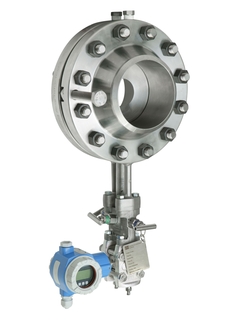

    Calculated volume or mass flow measurement. dp primary element (orifice).
    Orifice flange union with flange taps.

  • Sensor features

    Internationally standardized ISO5167-2.

    Including orifice flanges.

    Exchangeable orifice plate.

    Compact or remote design.

    Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown.

    Deltabar S/M differential pressure transmitter.

  • Nominal diameter range

    DN 25...500

    1" ... 24"

  • Max. measurement error

    typically < 1% of calculated volume or mass acc. ISO5167 without calibration.

    Uncertainty of primary element excluding uncertainty of density or compensation.

  • Measuring range

    2.5 ... 50'000 m3/h

    12.5 ... 250'000 kg/h at 10bar/230°C

  • Max. process pressure

    PN10 ... 160

    Cl.300 ... 2500

  • Medium temperature range

    Compact version:

    -200°C ... 200°C

    -328°F ... 392°F



    Remote version:

    -200°C ... 1000°C

    -328°F ... 1832°F

  • Degree of protection

    Transmitter (Deltabar):

    IP67

    NEMA6P

  • Display/Operation

    Transmitter (Deltabar):

    4-line display

    3 push buttons

    Quick setup

    HistoROM

  • Outputs

    Transmitter (Deltabar):

    4 ... 20 mA

  • Digital communication

    Transmitter (Deltabar):

    HART

    PROFIBUS PA

    FOUNDATION Fieldbus

  • Hazardous area approvals

    Transmitter (Deltabar):

    ATEX

    FM

    CSA

    IEC

    TIIS

    NEPSI

  • Measuring principle

    Differential pressure

  • Product headline

    Calculated volume or mass flow measurement. dp primary element (orifice).
    Orifice flange union with flange taps.

  • Sensor features

    Internationally standardized ISO5167-2.

    Including orifice flanges.

    Exchangeable orifice plate.

    Compact or remote design.

    Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown.

    Deltabar S/M differential pressure transmitter.

  • Nominal diameter range

    DN 25...500

    1" ... 24"

  • Max. measurement error

    typically < 1% of calculated volume or mass acc. ISO5167 without calibration."

    Uncertainty of primary element excluding uncertainty of density or compensation."

  • Measuring range

    2.5 ... 50'000m3/h

  • Max. process pressure

    PN10 ... 160

    Cl.300 ... 2500

  • Medium temperature range

    Compact version:

    -200°C ... 200°C

    -328°F ... 392°F



    Remote version:

    -200°C ... 1000°C

    -328°F ... 1832°F

  • Degree of protection

    Transmitter (Deltabar):

    IP67

    NEMA6P

  • Display/Operation

    Transmitter (Deltabar):

    4-line display

    3 push buttons

    Quick setup

    HistoROM

  • Outputs

    Transmitter (Deltabar):

    4 ... 20 mA

  • Digital communication

    Transmitter (Deltabar):

    HART

    PROFIBUS PA

    FOUNDATION Fieldbus

  • Hazardous area approvals

    Transmitter (Deltabar):

    ATEX

    FM

    CSA

    IEC

    TIIS

    NEPSI

  • Measuring principle

    Differential pressure

  • Product headline

    Calculated volume or mass flow measurement. dp primary element (orifice).
    Orifice flange union with flange taps.

  • Sensor features

    Internationally standardized ISO5167-2.

    Including orifice flanges.

    Exchangeable orifice plate.

    Compact or remote design.

    Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown.

    Deltabar S/M differential pressure transmitter.

  • Nominal diameter range

    DN 25...500

    1" ... 24"

  • Max. measurement error

    typically < 1% of calculated volume or mass acc. ISO5167 without calibration.

  • Measuring range

    0.1 ... 5'500m3/h

  • Max. process pressure

    PN10 ... 160

    Cl.300 ... 2500

  • Medium temperature range

    Compact version:

    -200°C ... 200°C

    -328°F ... 392°F



    Remote version:

    -200°C ... 1000°C

    -328°F ... 1832°F

  • Degree of protection

    Transmitter (Deltabar):

    IP67

    NEMA6P

  • Display/Operation

    Transmitter (Deltabar):

    4-line display

    3 push buttons

    Quick setup

    HistoROM

  • Outputs

    Transmitter (Deltabar):

    4 ... 20 mA

  • Digital communication

    Transmitter (Deltabar):

    HART

    PROFIBUS PA

    FOUNDATION Fieldbus

  • Hazardous area approvals

    Transmitter (Deltabar):

    ATEX

    FM

    CSA

    IEC

    TIIS

    NEPSI

Documents / Manuals / Software

  • Deltatop

    Differential pressure flow measurement with orifices and Deltabar
    differential pressure transmitter

    Technical Information (TI)
  • Deltatop - Orifices

    Differential pressure flow measurement with orifices and Deltabar
    differential pressure transmitter
    The universal measuring
    system for steam, gases and liquids

    Operating Instruction (BA)
  • Pomiary Automatyka Robotyka marzec 2007

    Klasyczne pomiary przep&
    322;ywu cieczy pary i gazów

    Publications (PU)
    09/08
    Polish
  • Control Engineering Polska kwiecie& 324; 2008

    Klasyczne pomiary przep&
    322;ywu cieczy, pary i gazów z u
    &
    380;yciem elementów spi&
    281;trzaj&
    261;cych

    Publications (PU)
    09/08
    Polish
  • 压力测量

    用于过程压力、差压、液位和流量测量的专业仪表

    Fields of Activities (FA)
    09/15
    Chinese
  • Basınç Ölçümü

    Proses basıncı, fark basınç, seviye ve akış için güçlü enstrümanlar

    Fields of Activities (FA)
    05/15
    Turkish
  • Pressure measurement

    Powerful instruments for process pressure, differential pressure, level
    and flow

    Fields of Activities (FA)
    03/17
    English
  • Catálogo Medición de Presión

    Instrumentos para la medición de presión, presión diferencial, nivel y
    caudal de proceso

    Fields of Activities (FA)
    03/17
    Spanish
  • Druckmesstechnik

    Leistungsfähige Messgeräte für Prozessdruck, Differenzdruck, Füllstand
    und Durchfluss

    Fields of Activities (FA)
    03/17
    German
  • Pressure measurement

    American version: Powerful instruments for process pressure,
    differential pressure, level
    and flow

    Fields of Activities (FA)
    03/17
    English
  • Mesure de pression

    Appareils de mesure pour la pression de process, la pression
    différentielle, le niveau et le débit

    Fields of Activities (FA)
    03/17
    fr
  • Misura della pressione

    Potenti strumenti per la misura della pressione di processo, pressione
    differenziale,
    livello e portata

    Fields of Activities (FA)
    03/17
    Italian
  • Pomiar ciśnienia

    Potężna aparatura do pomiaru
    ciśnienia procesowego, różnicy
    ciśnień, poziomu i przepływu

    Fields of Activities (FA)
    03/14
    Polish
  • Komplettpaket Druckmesstechnik

    Ein Ansprechpartner - spart Zeit und reduziert Kosten

    Competence Brochure (CP)
    05/15
    German
  • Präzision für die Praxis Gasdurchfluss zuverlässig messen

    Verschleißfrei, wartungsfrei, stabil im Prozess und hochgenau:
    Gasdurchfluss-Messgeräte von Endress+Hauser

    Competence Brochure (CP)
    02/14
    German
  • Deltatop

    Product Code: DV61S-, DP63D-, DP62D-, DP61D-, DO69S-, DO65F-, DO64P-, DO63C-, DO62C-, DO61W-, DN62S-, DN61S-
    Region/Country: Russia (TR CU)
    Approval Agency: EAC
    Protection: Ex d IIC T6...T4 Gb, Ex ia IIC T6...T4 Gb

    Explosion Protection
    Russian
  • Deltatop

    Product Code: DN61S-, DN62S-, DO61W-, DO62C-, DO63C-, DO64P-, DO69S-, DV61S-

    Pressure Equipment
    Russian
  • Deltatop

    Product Code: DV61S-, DP69D-, DP63D-, DP62D-, DP61D-, DO65F-, DO64P-, DO63C-, DO62C-, DO61W-, DN62S-, DN61S-
    Region/Country: Russia
    Approval Agency: Rosstandart
    Approval Number: DE.C.29.004.A_56261

    Metrology
    Russian
  • Deltatop

    Product Code: DO61W-, DO62C-, DO63C-, DO64P-, DO65F-, DP61D-, DP62D-, DP63D-
    Approval Agency: RM RS

    Marine
    Russian

Accessories / Spare parts

Nr
Order code
Specification
    • Order code 71071897

      Screw set UNF7/16x1-3/4", steel, Viton

      Consists of: 4x screw, length 1-3/4", steel. 2x seal FKM Viton. Usage: manifold, milled. DA63M, DPD61D/DPD62D/DPD63D, DO61W/DO62C/DO63C/DO65F. Not for manifold + connection IEC61518, both side.

    • Order code 71071899

      Screw set UNF7/16x1-3/4", steel, PTFE

      Consists of: 4x screw, length 1-3/4", steel. 2x seal PTFE. Usage: manifold, milled. DA63M, DPD61D/DPD62D/DPD63D, DO61W/DO62C/DO63C/DO65F. Not for manifold + connection IEC61518, both side.

    • Order code 71071900

      Screw set UNF7/16x2-1/4", steel, Viton

      Consists of: 4x screw, length 2-1/4", steel. 2x seal FKM Viton. Usage: manifold, forging. DA63M, DPD61D/DPD62D/DPD63D, DO61W/DO62C/DO63C/DO65F. Not for manifold + connection IEC61518, both side.

    • Order code 71071901

      Screw set UNF7/16x2-1/4", steel, PTFE

      Consists of: 4x screw, length 2-1/4", steel. 2x seal PTFE. Usage: manifold, forging. DA63M, DPD61D/DPD62D/DPD63D, DO61W/DO62C/DO63C/DO65F. Not for manifold + connection IEC61518, both side.

    • Order code 71285305

      Screw set UNF7/16x1-3/4", VA, Viton

      Consists of: 4x screw, length 1-3/4", VA. 2x seal FKM Viton. Usage: manifold, milled. DA63M, DP61D/DP62D/DP63D, DO61W/DO62C/DO63C/DO65F. Not for manifold + connection IEC61518, both side.

    • Order code 71285307

      Screw set UNF7/16x1-3/4", VA, PTFE

      Consists of: 4x screw, length 1-3/4", VA. 2x seal PTFE. Usage: manifold, milled. DA63M, DP61D/DP62D/DP63D, DO61W/DO62C/DO63C/DO65F. Not for manifold + connection IEC61518, both side.

    • Order code 71285308

      Screw set UNF7/16x2-1/4", VA, Viton

      Consists of: 4x screw, length 2-1/4", VA. 2x seal FKM Viton. Usage: manifold, forging. DA63M, DP61D/DP62D/DP63D, DO61W/DO62C/DO63C/DO65F. Not for manifold + connection IEC61518, both side.

    • Order code 71285310

      Screw set UNF7/16x2-1/4", VA, PTFE

      Consists of: 4x screw, length 2-1/4", VA. 2x seal PTFE. Usage: manifold, forging. DA63M, DP61D/DP62D/DP63D, DO61W/DO62C/DO63C/DO65F. Not for manifold + connection IEC61518, both side.
