Transmitter (Deltabar): HART PROFIBUS PA FOUNDATION Fieldbus
Hazardous area approvals
Transmitter (Deltabar): ATEX FM CSA IEC TIIS NEPSI
Product headline

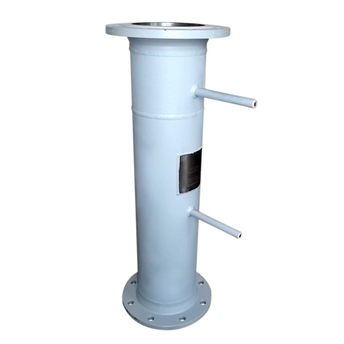

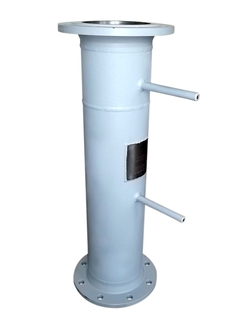

Calculated volume or mass flow measurement. dp primary element (orifice). Special designs.
Sensor features
Internationally standardized. Nominal pipe size DN10...2000 ; 3/8...80". Meter runs. Weld-In versions. Compact or remote design. Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown. Deltabar S/M differential pressure transmitter.
Nominal diameter range
DN 10...2000 3/8" ... 80"
Max. measurement error
typically < 1% of calculated volume or mass acc. ISO5167 without calibration. Uncertainty of primary element excluding uncertainty of density or compensation.
Transmitter (Deltabar): HART PROFIBUS PA FOUNDATION Fieldbus
Hazardous area approvals
Transmitter (Deltabar): ATEX FM CSA IEC TIIS NEPSI
Product headline
Calculated volume or mass flow measurement. dp primary element (orifice). Special designs.
Sensor features
Internationally standardized. Nominal pipe size DN10...2000 ; 3/8...80". Meter runs. Weld-In versions. Compact or remote design. Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown. Deltabar S/M differential pressure transmitter.
Nominal diameter range
DN 10...2000 3/8" ... 80"
Max. measurement error
typically < 1,5% of calculated volume or mass acc. ISO5167 without calibration. Uncertainty of primary element excluding uncertainty of density or compensation."
